Product Description

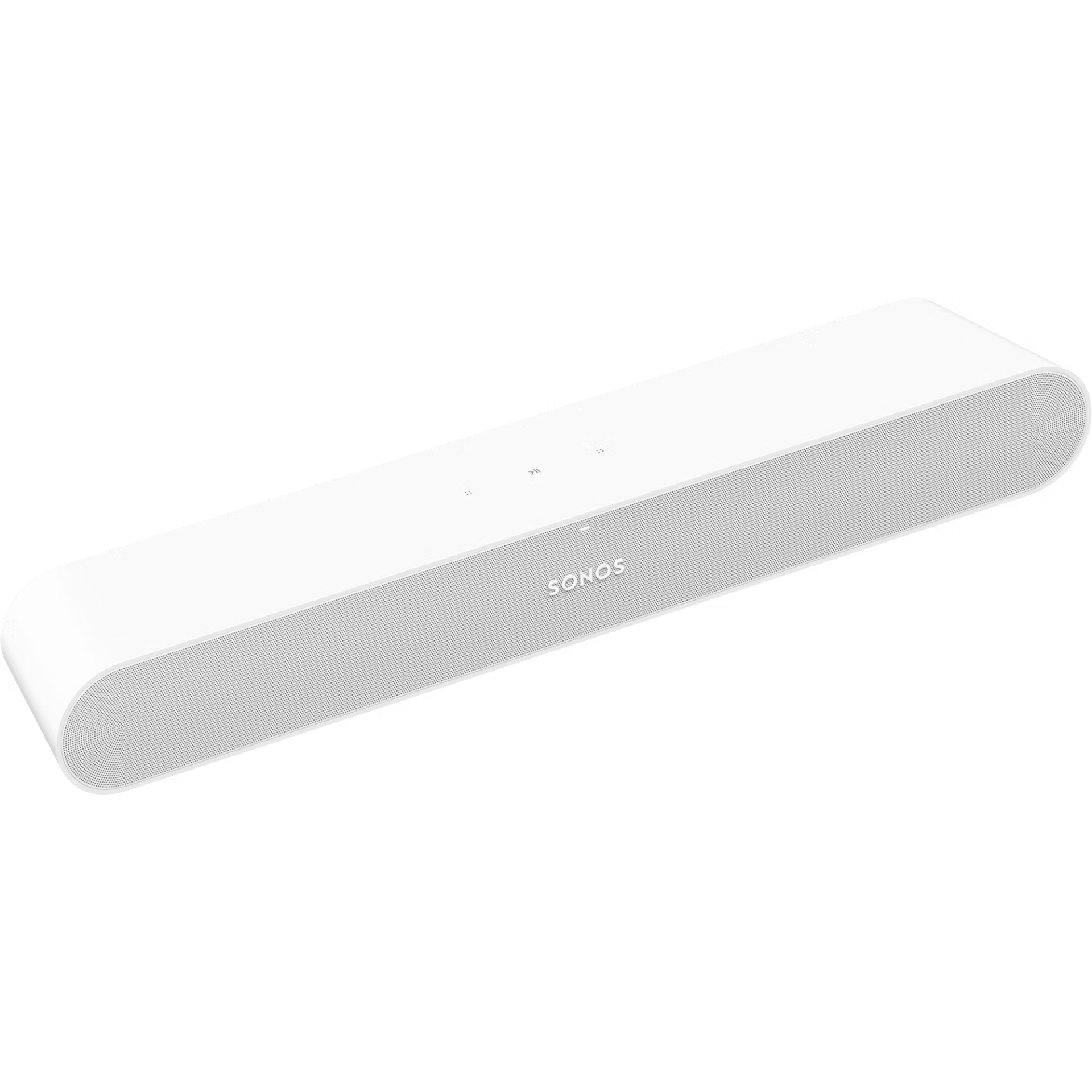

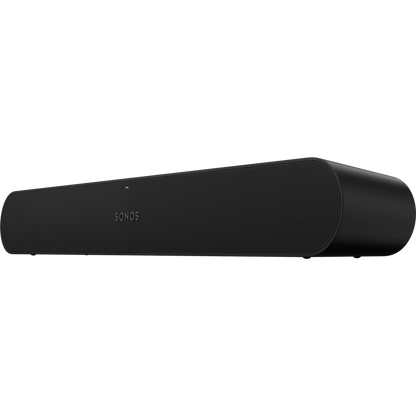

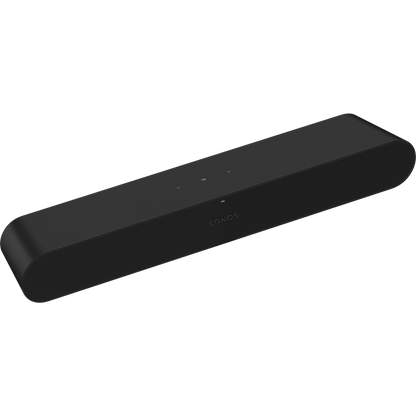

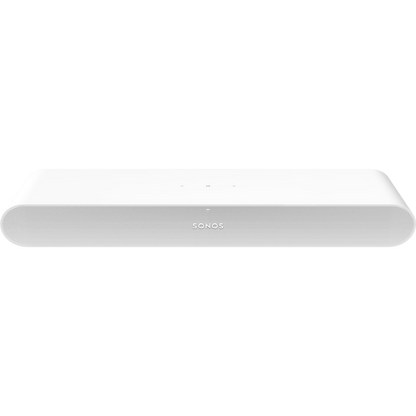

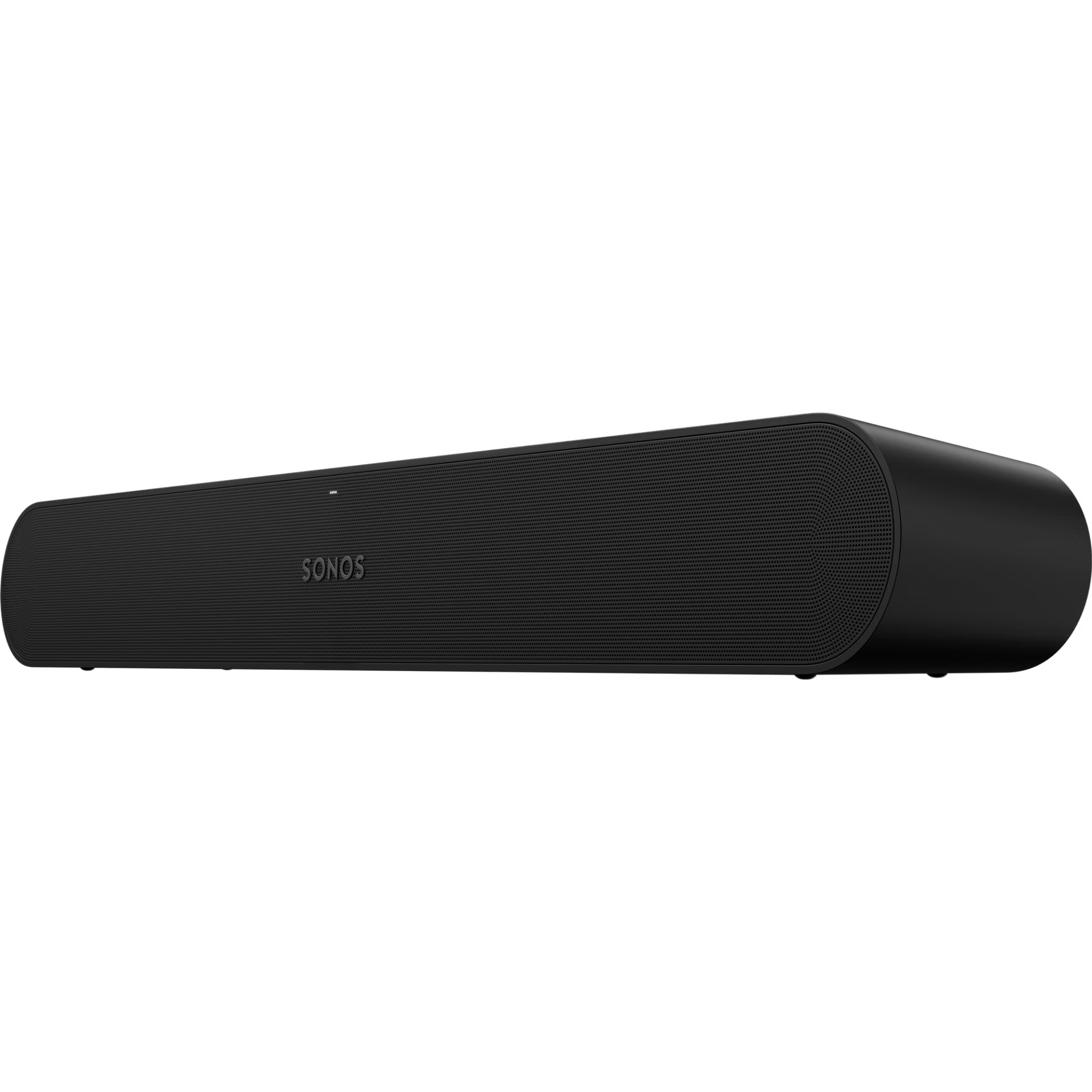

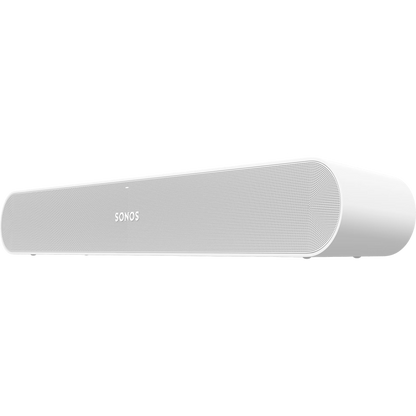

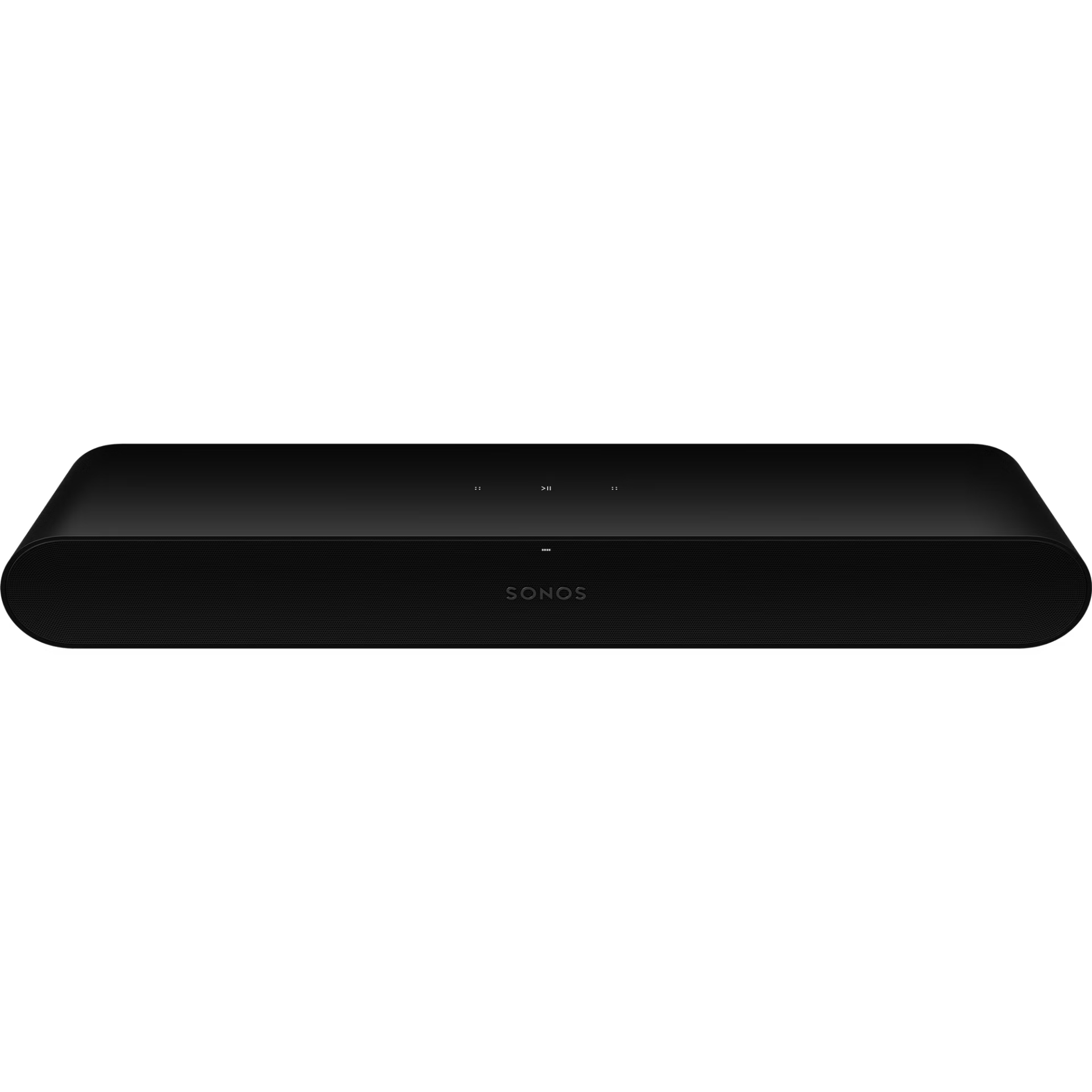

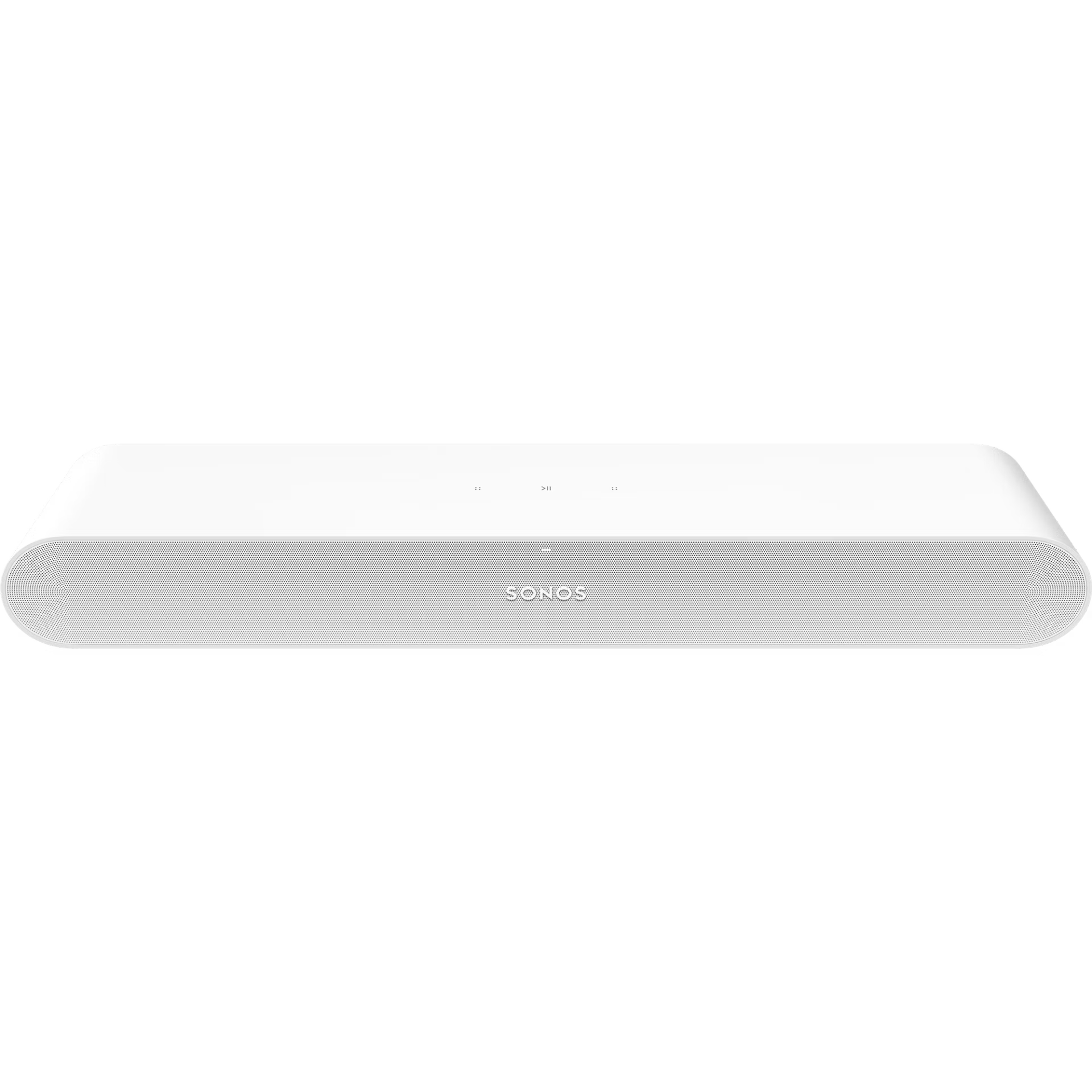

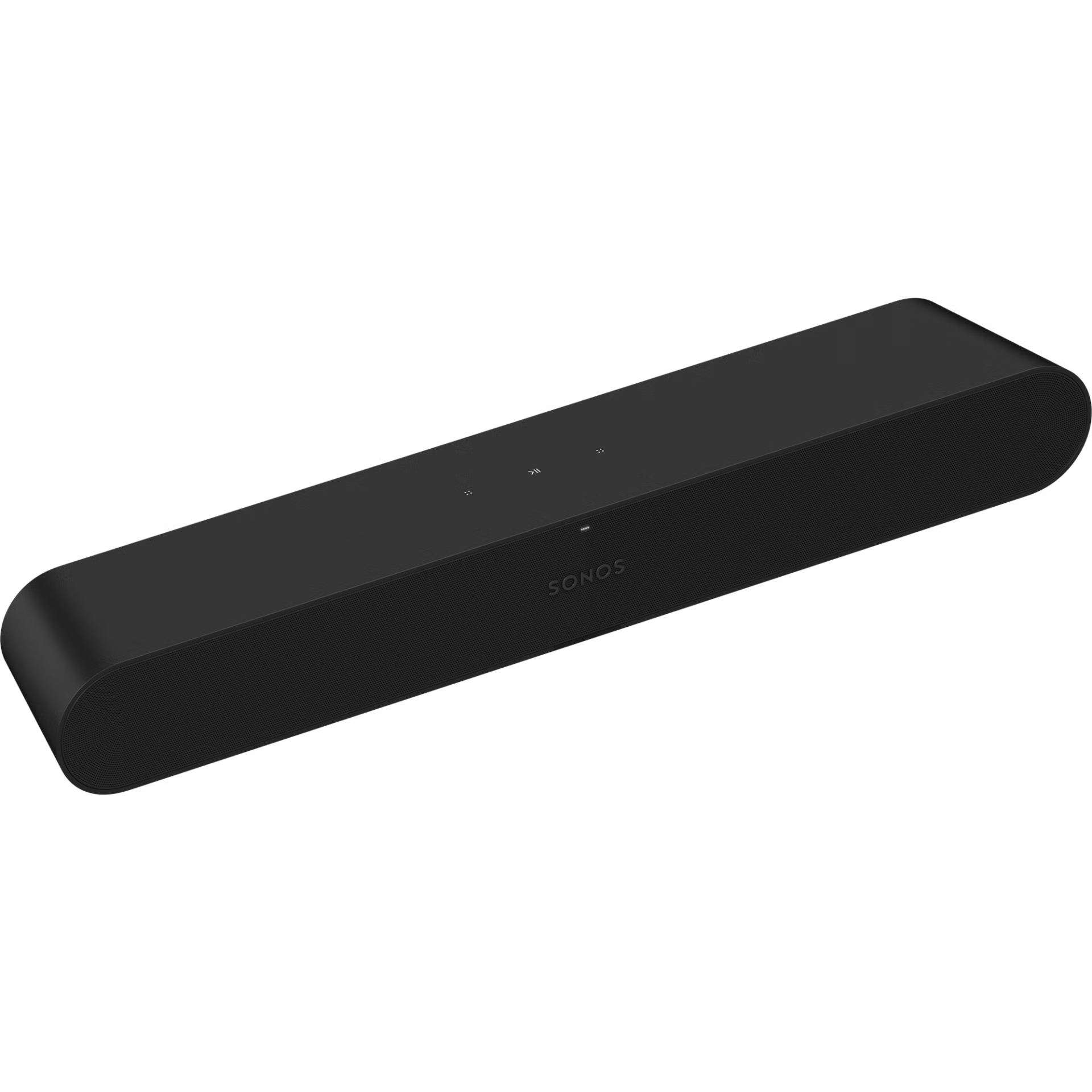

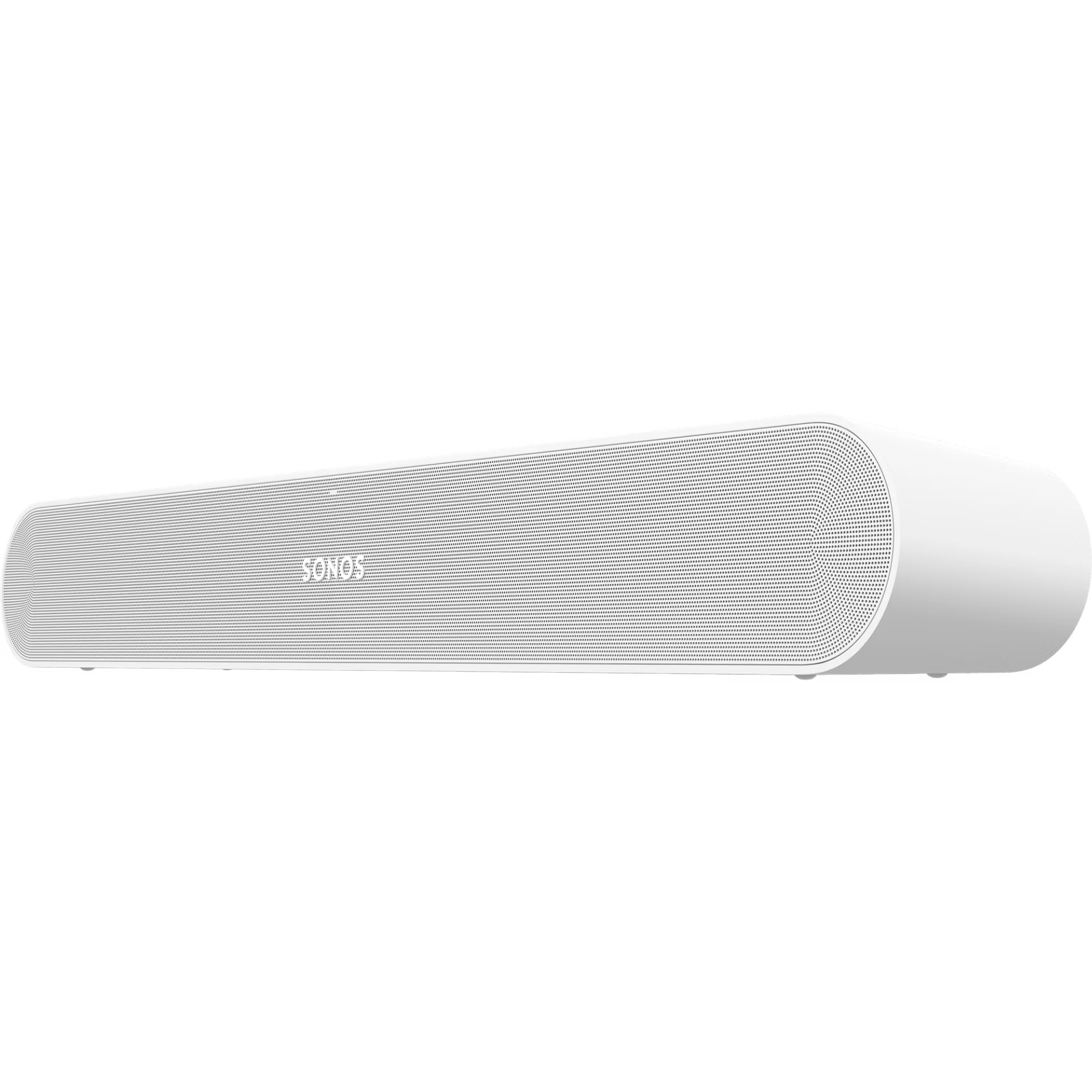

The Sonos Ray is a compact, entry-level soundbar designed for small-to-medium rooms, featuring optical connectivity, app-based tuning, and a 2.0 channel setup. It measures 22 inches wide, weighs 1.95 kg, and uses forward-facing drivers, making it ideal for placement inside TV cabinets or on shelves.
Audio + Acoustics
  • Drivers: Four Class-D digital amplifiers, two tweeters, and two high-efficiency midwoofers.
  • Audio Channels: 2.0 Stereo (supported by ported enclosure for bass).
  • Sound Enhancement: Speech Enhancement and Night Sound modes available in the Sonos App.
  • Surround Sound: Supports Dolby Digital 5.1 (via optical) and can pair with Sonos One/Era speakers for surround.

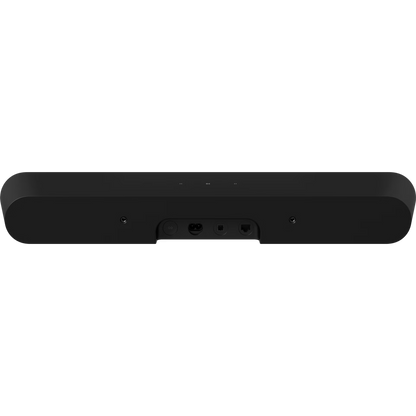

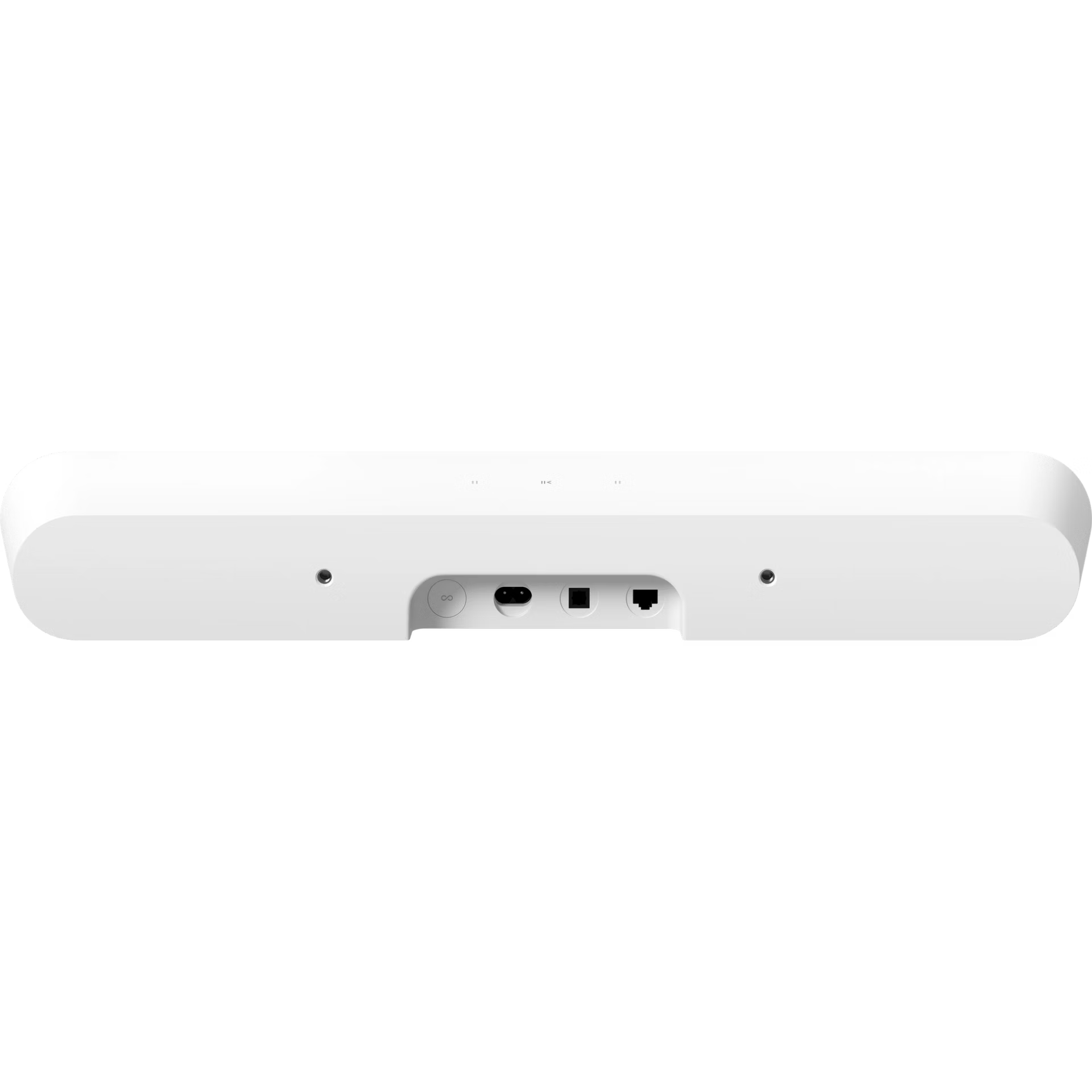

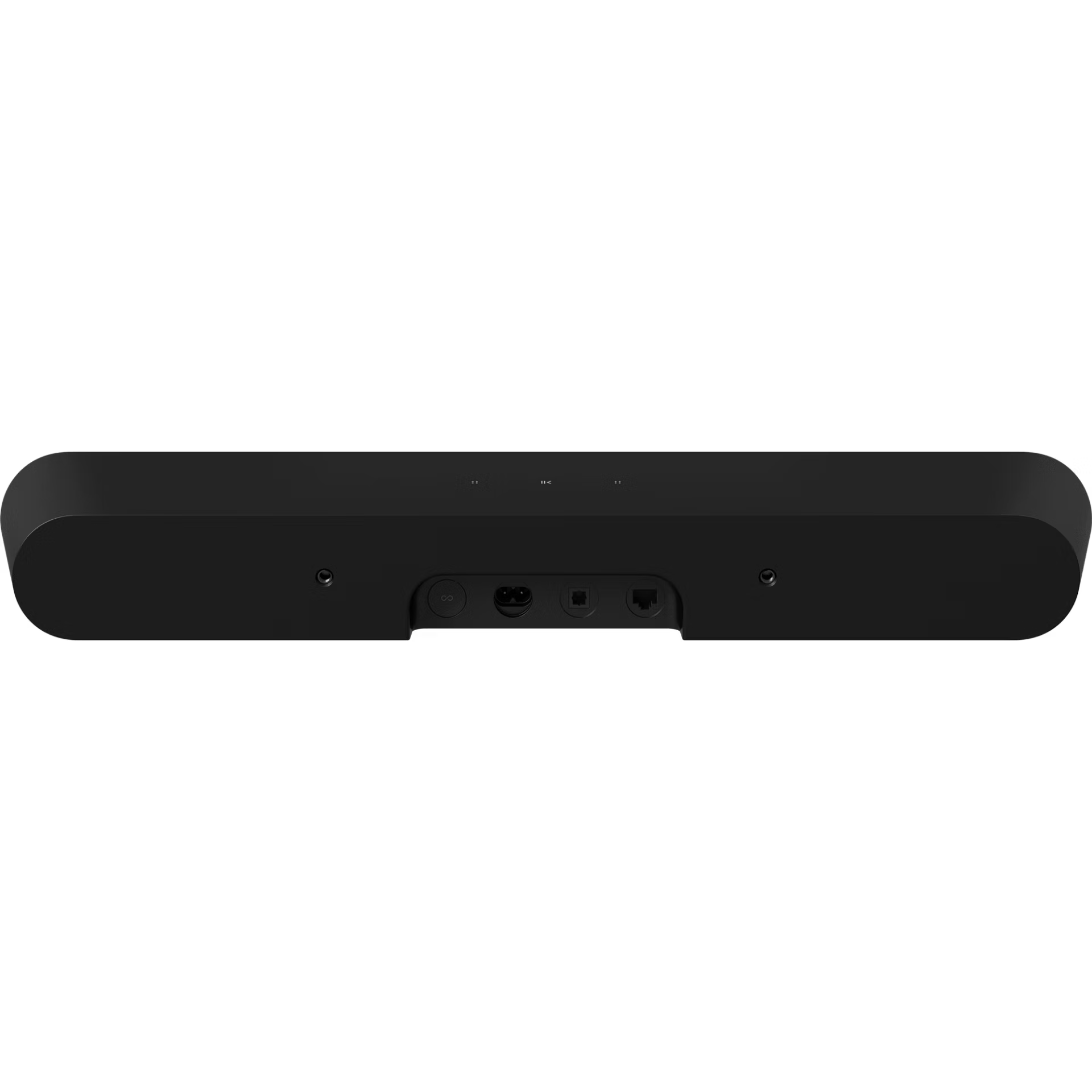

Connectivity

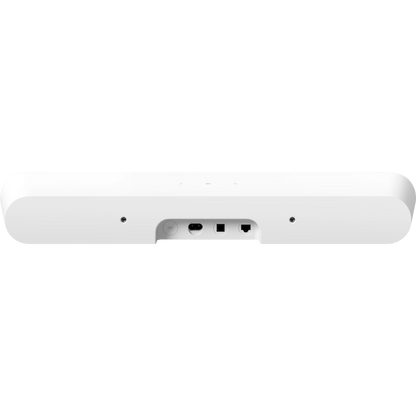

  • Audio Input: Optical Port (no HDMI).
  • Network: Wi-Fi (2.4 GHz) and 10/100 Mbps Ethernet port.
  • Streaming: Apple AirPlay 2, Spotify Connect, and Sonos Radio.
  • Voice Control: None (No built-in microphone).
Physical + Dimensions
  • Dimensions (H x W x D): 71 x 559 x 95 mm (2.79 x 22 x 3.74 inches).
  • Weight: 1.95 kg (4.3 lb).
  • Controls: Capacitive touch controls (Volume, Play/Pause, Skip)
  • Mounting: Wall-mountable (optional bracket required).
Key Features
  • Trueplay Tuning: Optimizes sound for room acoustics (iOS device required).
  • Compatibility: Works with TV remotes (via optical IR).
  • Power: 100-240V 50/60Hz AC internal power supply.
  • Color: Available in Black or White.
