Work by Day, Cinema by Night: Transforming an Odd-Shaped Home Office in Bangalore

The Rise of the Hybrid Dual-Purpose Room in Indian Homes

In the post-pandemic era across urban India, especially tech hubs like Bangalore, Hyderabad, and Pune, the home office has become a permanent fixture. Working professionals spend 8 to 10 hours daily in dedicated study rooms or WFH offices. However, leaving a valuable 120-to-150 sq. ft. room underutilised after working hours is a missed opportunity in modern apartment layouts.

The modern goal is to build a dual-purpose hybrid room: an energizing, well-lit productivity space by day that effortlessly transforms into a high-octane 5.1.2 Dolby Atmos media sanctuary by night for family movie nights, OTT bingeing, or live sports with friends.

For Mr. Darshan, a Group Product Manager at Microsoft in Bangalore, this exact vision was top of mind. His home office presented two major hurdles: an irregular, non-rectangular room geometry with non-parallel walls and a tight budget target of ₹5 to 6 Lakhs. This case study details how TappAV engineered a custom dual-purpose home cinema setup that turns spatial constraints into a design asset.

The Challenge: Solving Non-Parallel Walls & Off-Center Projections

Traditional home theater acoustic rules preach perfect rectangular geometry. In Mr. Darshan’s room, none of the side or rear walls were parallel or flat. The only straight surface was the front wall, which was further complicated by an offset window throwing natural daylight across the projection zone.

To overcome these architectural hurdles without forcing a full structural overhaul, TappAV developed a focused three-part strategy:

Concealed Rear Cabinet Integration: Instead of installing an unsightly ceiling mount that clutters the office aesthetic, TappAV carved a dedicated niche inside a custom rear wall cabinet to house the projector.
Epson EH-TW7000 4K Lamp Projector: Selected specifically for its wide horizontal lens shift (up to 24%) and vertical lens shift (up to 60%). This optics capability allowed the projector to sit off-center inside the rear cabinet while projecting a perfectly aligned, square 4K image onto the front motorized screen.

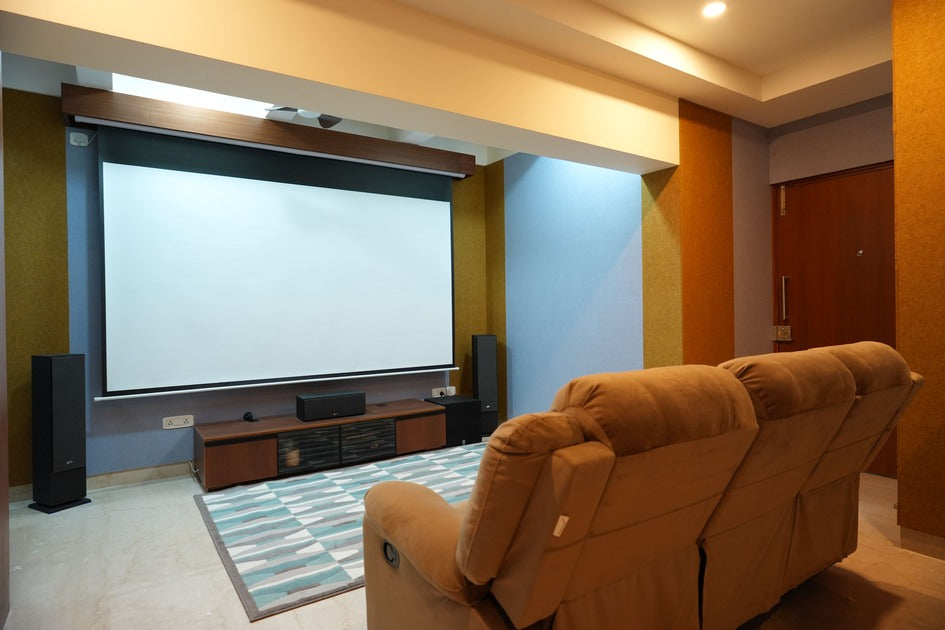

Roll-Up Motorized Screen over Window: The front screen was positioned to drop directly in front of the window frame. During work hours, the screen retracts into its upper casing, allowing natural sunlight to illuminate the work desk. At sunset, lowering the screen covers the window frame and prepares the space for cinema mode.

Acoustic Engineering: Taming Standing Waves in an Asymmetrical Space

Irregular wall angles cause unpredictable bass reflections, trapped sound waves, and flutter echoes. Standard speaker packages often struggle in non-uniform spaces, requiring intelligent acoustic calibration:

Front & Surround Channels: Polk Audio Monitor XT Floorstanding and Bookshelf Speakers, delivering high-sensitivity, dynamic frequency response for action soundtracks.
Height Channels: Two discrete overhead speakers for object-based Dolby Atmos spatial effects.
ELAC Varro PS250 Subwoofer (App-Controlled): The defining component of the audio setup. Armed with auto-room EQ and smartphone app DSP tuning, the ELAC subwoofer allowed TappAV technicians to cancel out low-frequency boominess trapped in the room's irregular corners.
Strategic Acoustic Treatment & Carpeting: Fabric-wrapped acoustic absorption panels installed on primary reflection points on the front and right-hand side walls, paired with a plush floor carpet to control floor bounce from the floorstanding speakers.

Want to watch full setup tour of room? Click here.

The Remote Execution Model: Remote Design to On-Site Precision

A common concern among homeowners across India is remote project management, specifically how a Pune-based AV integration firm, TappAV can successfully execute a precision project in Bangalore. Mr. Darshan initially consulted local home theater dealers in Bangalore, but found a gap in technical curiosity and custom problem-solving for non-standard rooms.

TappAV’s structured multi-stage execution model bridged the geographic distance:

Data-Driven Virtual Consultation: The project began with a detailed CAD architectural review, site photos, and beam dimension analysis.
3D Visualisation & Electrical Layouts: TappAV produced detailed 3D renders and precise electrical/conduit schematics for the client's local interior team to follow during initial civil works.
On-Site Installation & Calibration: Once civil work concluded, TappAV’s lead engineers deployed to Bangalore to conduct speaker mounting, screen alignment, cable termination, acoustic paneling, and final AVR room calibration.

Frequently Asked Questions (FAQs)

Q1: Can an odd-shaped room or non-rectangular space be converted into a home theater?

Answer: Yes. While rectangular rooms simplify standard speaker placement, odd-shaped rooms can actually reduce structural standing waves if acoustically managed properly. Using projectors with lens shift and subwoofers with app-controlled DSP equalization allows you to achieve reference-quality cinema performance in asymmetrical spaces.

Q2: How do you turn a home office into a home cinema without feeling cluttered?

Answer: The key lies in concealed components and motorized equipment. Using a motorized roll-up projector screen over windows, hiding projectors inside cabinetry, and employing dual-use furniture keeps the room functional and spacious during the workday.

Q3: What is the realistic budget for a 5.1.2 Dolby Atmos home cinema setup in India?

Answer: A high-performance 4K 5.1.2 Dolby Atmos setup—including a 4K projector, motorised screen, AV receiver, Polk speakers with Elac Subwoofer, acoustic treatment, and installation—typically ranges between ₹4 Lakhs and ₹6 Lakhs.

Q4: Can TappAV design and execute home theatre projects outside Pune?

Answer: Yes. TappAV provides remote consultation, detailed 3D layout designs, conduit schematics, and complete end-to-end on-site installation across major Indian cities including Bangalore, Hyderabad, Mumbai, and Delhi-NCR.
